Bubble Gum

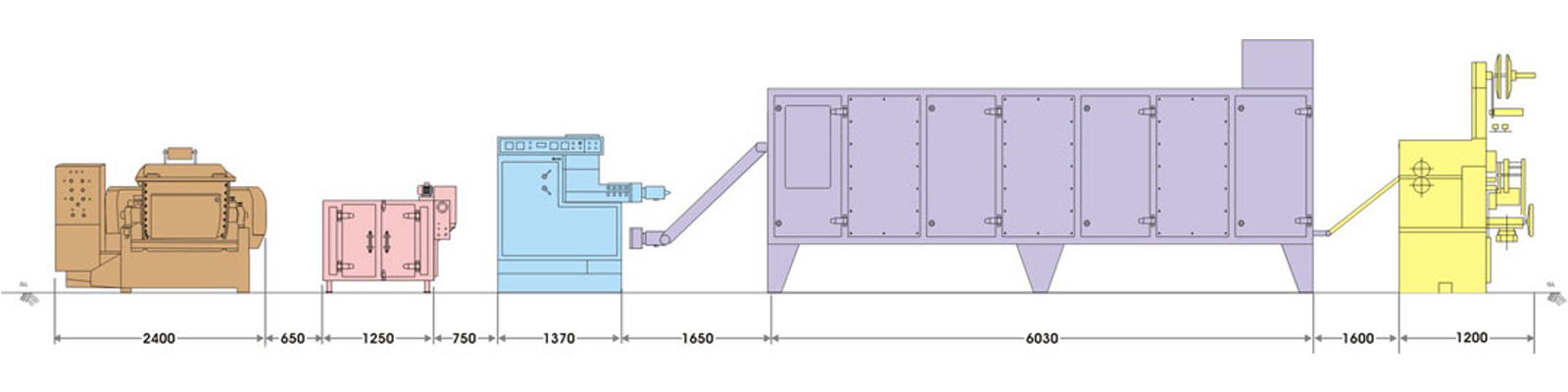

It consist of Gum extrusion, cooling and packing.

The line can make one color or two color with different specification and shape as per requirement.

MACHINES

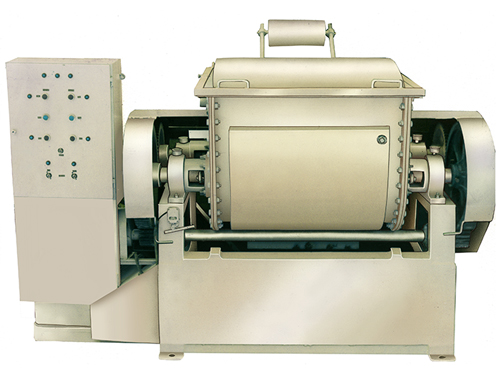

sigma mixer: sm-200

A Z-shaped blades made of hardened cast steel polished & finished. The stuffing box can be heated electronically or by steam. The tilting of the stuffing box is automated.

Specification

Output: 200 kg

Length: 2.16 m

Width: 1.49 m

Height: 1.49 m

Weight: 780 kg / 1719.58 lbs

Power: 15 hp with heater

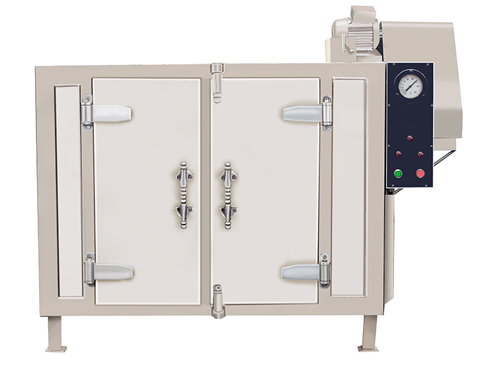

gum base melter: gm-200

Hot air circulating chamber consisting of arrangement for holding the tray with gum base. Both side heavy electric heater is provided for uniform heating of gum base.

Specification

Output: 200 kg

Length: 2.21 m

Width: 1.30 m

Height: 1.60 m

Weight: 200 kg / 440.8 lbs

Power: 19 hp with heater

Extruder : E200

The Extruder is with variable speed drive with constant torques over the entire control range. The scrolls are made from individual elements that are pushed onto shaft. Temperature in the pressure chamber is maintained by ciruculating liquid. Exclusive configuration of feeding roller ensuring a perfect uniform extrusion in one or more ropes.

Specification

Output: 200 kg / hr

Length: 1.42 m

Width: 1.05 m

Height: 1.6 m

Weight: 750 kg / 1653.45 lbs

Power: 10 HP

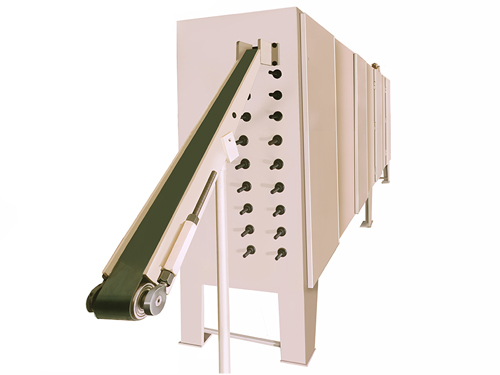

11-deck cooling coveyor: cc-11

Rope is taken over directly by narrow conveyor. The belts are textile reinforced PU coated. Speed of the belt gradually increases depending on the product. Large refrigeration unit gives uniform cooling. Insulated structure to avoid heat transfer.

Specification

Output: 400 kg/hr

Length: 6.47 m

Width: 1.04 m

Height: 2.21 m

Weight: 650 kg / 1432.9 lbs

Power: 12 hp with ac

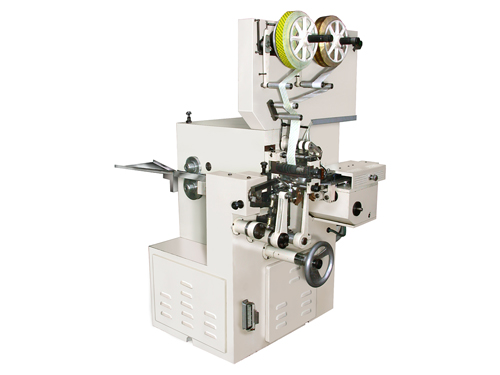

fold wrap machine (end fold & top fold): fw-500

Adjustable cutting length for product & wrapper. Large Loading Disc. Top fold can also be done. Photo Sensor available. Controlled heating & cooling system. No trained staff required. Slitting & folding device for inner. Multi zone temperature control system. Low maintenance & easy to clean.

Specification

Output: 500 pcs/min

Length: 1.27 m

Width: 1.19 m

Height: 1.90 m

Weight: 1180 kg / 2414 lbs

Power: 5 hp
