Ball Gum

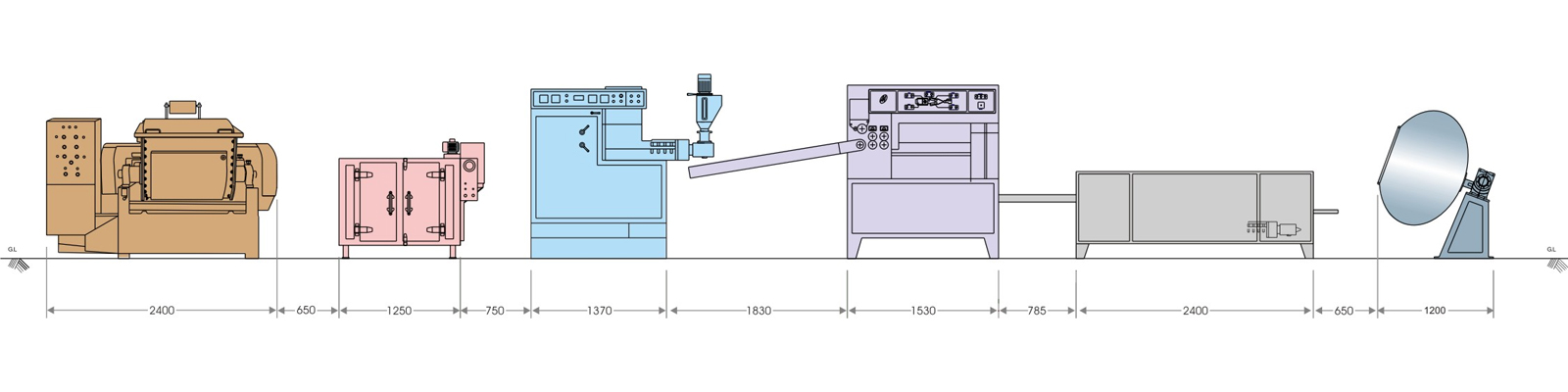

These lines can produce one or more kinds of product in different shapes, filled or non-filled.

A wide range of equipment allows the customer to meet numerous and various technical particularities of extrusion, shaping and cooling.

MACHINES

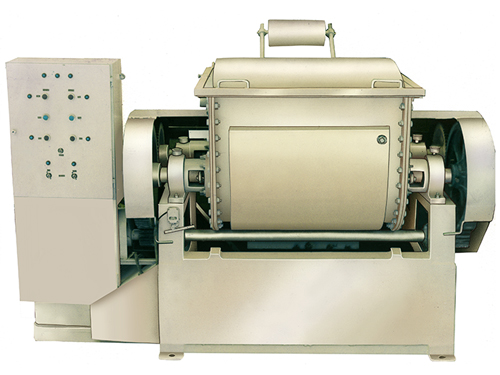

sigma mixer: sm-200

A Z-shaped blades made of hardened cast steel polished & finished. The stuffing box can be heated electronically or by steam. The tilting of the stuffing box is automated.

Specification

Output: 200 kg

Length: 2.16 m

Width: 1.49 m

Height: 1.49 m

Weight: 780 kg / 1719.58 lbs

Power: 15 hp with heater

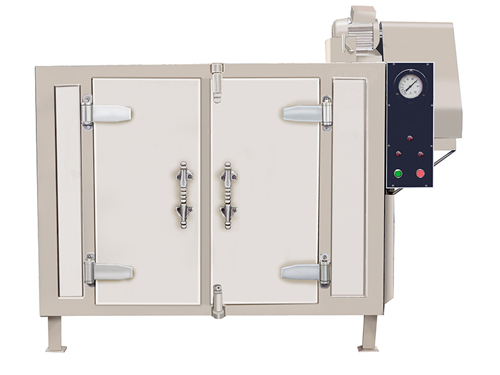

gum base melter: gm-200

Hot air circulating chamber consisting of arrangement for holding the tray with gum base. Both side heavy electric heater is provided for uniform heating of gum base.

Specification

Output: 200 kg

Length: 2.21 m

Width: 1.30 m

Height: 1.60 m

Weight: 200 kg / 440.8 lbs

Power: 19 hp with heater

extruder: E-300

Extruder: The Extruder is with variable speed drive with constant torques over the entire control range. The scrolls are made from individual elements that are pushed onto shaft. Temperature in the pressure chamber is maintained by circulating liquid. Exclusive configuration of feeding roller ensuring a perfect uniform extrusion in one or more ropes.

Specification

Output: 300 kg / hr

Length: 1.42 m

Width: 1.05 m

Height: 1.6 m

Weight: 750 kg / 1653.45 lbs

Power: 10 hp

ball gum: bg-300

Rope powdering is possible. Powdered fill, semi liquid fill and hollow balls can be produced.

Specification

Output: 300 kg / hr

Length: 1.77 m

Width: 0.69 m

Height: 1.82 m

Weight: 800 kg / 881.84 lbs

Power: 4 hp

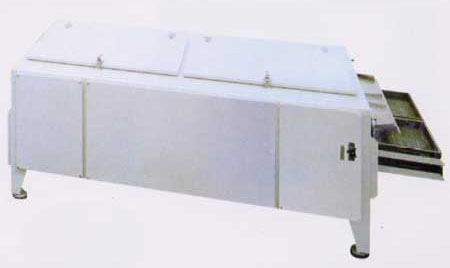

cooling conveyor for ball gum: ccb-300

One large stainless steel tray oscillating to avoid the deshaping of ball. Air blower is provided for air circulation totally enclosed structure to maintain temprature easily.

Specification

Output: 300 kg / hr

Length: 2.4 m

Width: 1.2 m

Height: 1.6 m

Weight: 150 kg / 330.69 lbs

Power: 1.5 hp

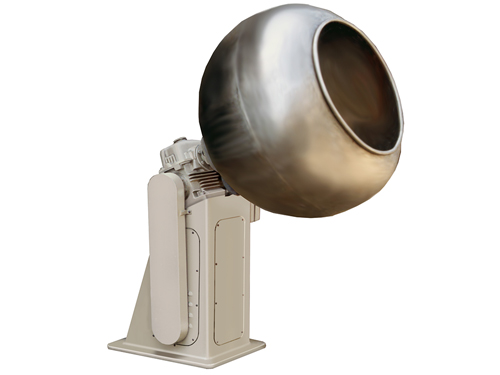

coating pan: cp-48

Stainless steel pear shaped tilted pan mounted on heavy duty frame. The drive in these units are by reduction gear box running in an oil bath & gear motor. The pan rotates to coat the product with desired coating material.

Specification

Length: 1.4 m

Width: 1.4 m

Height: 2.0 m

Weight: 350 kg / 771.6 lbs

Power: 3 hp

Batch Size: 100 kg
